We now have created a platform on Hackster.IO for the Pulse Train Hat, if you could help us by becoming a member, then it would help us a lot as we need 25 members to get it featured.
PTHAT USB to Serial/I2C Board.
Although the Pulse Train Hat has been designed primarily to fit and work with the Raspberry Pi, it can also be used stand alone or with other MCU’s.

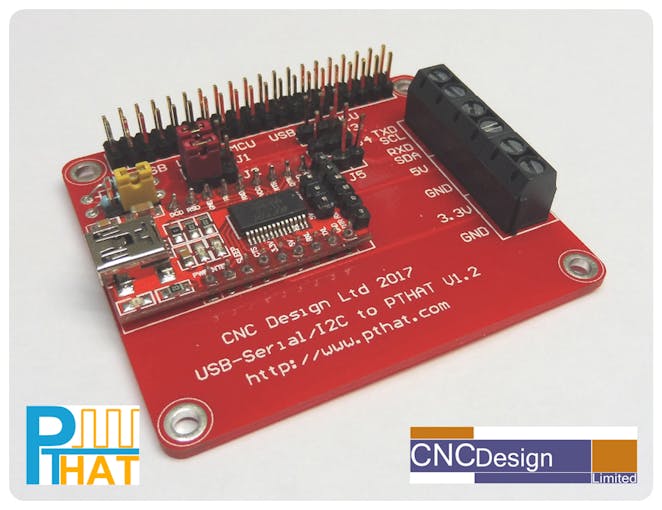

We have designed a PTHAT USB to Serial/I2C board, especially for people wanting to use it Stand Alone that accommodates the popular FTDI 232 module.
There are a few jumpers on board that will allow you to direct the PTHAT Serial TX/RX lines to either the FTDI USB>Serial module or to the connector blocks. Using the connector blocks allow other MCU, such as Arduino boards to be connected and send commands to the PTHAT.
Also the PTHAT has connections to it’s I2C ports which can be linked again back to the USB>Serial module or the connector blocks.The FTDI 232 module can be placed in I2C mode if needed for Firmware developers. With the current PTHAT firmware, it only supports serial commands, but in the future that may change. So we added it in!
The jumpers will be in default mode for Serial communications and we will publish more on the I2C later on.
Pulse Train Hat mounted on PTHAT USB to Serial/I2C board
Mode 1 FT232 USB > Serial > PTHAT
Mode 2 External MCU > Serial > PTHAT

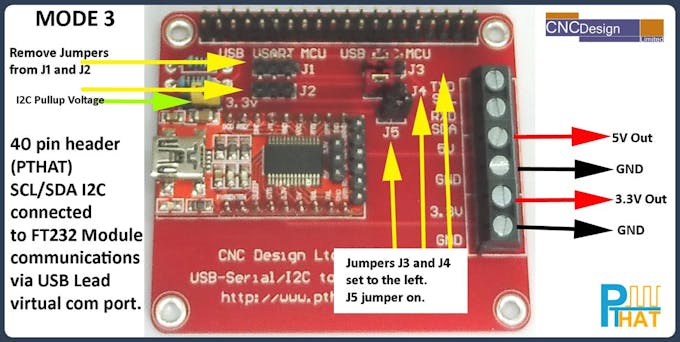

Mode 3 FT232 USB > I2C > PTHAT

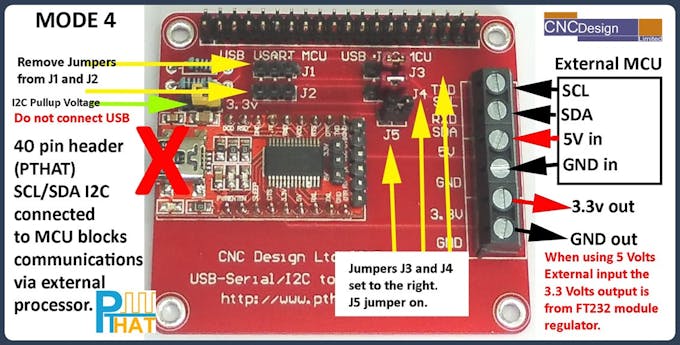

Mode 4 External MCU > I2C > PTHAT
Below is a connection diagram if you wanted to use just a FTDI 232 module and not our PTHAT USB>Serial Board:
As shown below, you need to supply 3.3 Volts, 5 Volts and GND (0 Volts). Then simply connect up the Serial UART Transmit and Receive lines. Using a USB > Serial converter works well such as the low cost ones that use the FTDI chips.
To test in stand alone mode on a PC for example, you can still use the Pulse Train Hat Serial Example applications that can be found under the Examples Page at http://pthat.com/index.php/examples/
Load the application into Visual Studio 2015/2017 and change the Release from ARM to X86 and then choose local machine. Run it up and it should work fine.
We are also in the process of uploading the samples already compiled to the Windows Store, so if you are running Windows 10, you can easily install and test directly from your Windows 10 computer.We will update this page with links when all applications are published.
