Things used in this project

Hardware components:
Servo (generic)

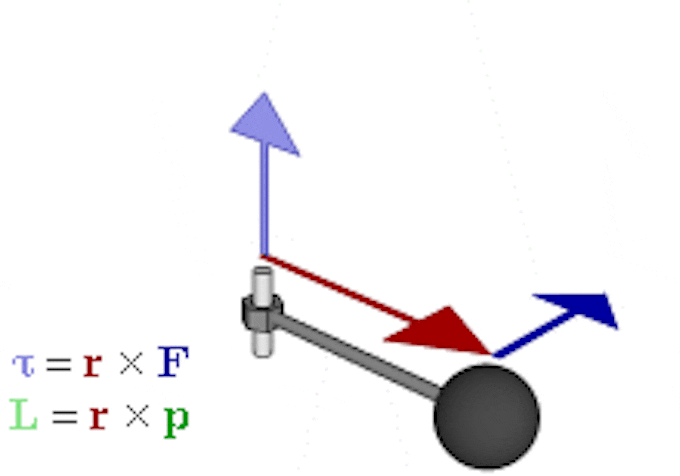

Servo motor has to be with more 250 torque
×1
Phpoc blue per 100x1000 euk22wtv9i
PHPoC PHPoC Blue
×1
Software apps and online services:
Vs2015logo
Microsoft Visual Studio 2015
  rv17q3stcl
PHPoC PHPoC Debugger

Schematics

Connect the Servo motor with Board
simple diagram to connect the servo motor with board
Servo jenxb5twau
the motor Connected
a photo after we connect the servo motor with PHPoc Blue Board
Servo example pic uwft3lqqpi

Code

task0 file the main file PHP
it used to program the board
<?php
//edited By ibrahim al nasser 2017
// this code originally from Phpoc website i edit this
// to fit the requirements an also correct some errors
// from practical point of view
if(_SERVER("REQUEST_METHOD"))
exit; // avoid php execution via http request

include_once "/lib/sn_dns.php";
include_once "/lib/vn_mqtt.php";
include_once "/lib/sd_340.php";

define("PWM_PERIOD", 20000); // 20000us (20ms)
define("WIDTH_MIN", 600);
define("WIDTH_MAX", 2450);
	uio_setup(0, 30, "out high");
uio_setup(0, 31, "out high");


	$flags = 0;
$angle = 0;

um_read(0, 0, $flags, 4); // read flags (offset 0, 32bit integer)
um_read(0, 4, $angle, 4); // read angle (offset 4, 32bit integer)

if(!$flags)
{
	ht_pwm_setup(0, (WIDTH_MIN + WIDTH_MAX) / 2, PWM_PERIOD, "us");

	$flags |= 0x00000001; // set init flag
	um_write(0, 0, int2bin($flags, 4)); // write flags (offset 0, 32bit integer)

	$angle = 90;
	um_write(0, 4, int2bin($angle, 4)); // write angle (offset 4, 32bit integer)
}



//$host_name = "test.mosquitto.org";
//$host_name = "iot.eclipse.org";
$host_name = "broker.hivemq.com";
//$host_name = "broker.mqttdashboard.com";
//$host_name = "[192.168.0.3]";
$port = 1883;

mqtt_setup(0, "PHPoC-MQTT Sub Example",  $host_name, $port);

/*
$will_qos = 2;
$will_retain = true;
$will_topic = "disaster/tsunami";
$will_message = "Goodbye forever");
$will = array($will_qos, $will_retain, $will_topic, $will_message);
*/
$will = "";
$username = "";
$password = "";

mqtt_connect(true, $will, $username, $password);

$out_topics = array(array("room/open", 1), array("room/close", 2));


$in_topic = "";
$in_content = "";
$is_retain = 0;

while(1)
{
	while(mqtt_state() == MQTT_CONNECTED)
{
	if(mqtt_subscribe($out_topics))
		break;
}
if(mqtt_state() == MQTT_DISCONNECTED)
		while(mqtt_reconnect() == false);
	uio_out(0, 31, LOW);
	if(mqtt_loop($in_topic, $in_content, $is_retain))
	{
		//TODO , procees the received publish packet here
		if($is_retain == 1)
		//	echo "<<a stale message\r\n";
	uio_out(0, 30, LOW);
	//	echo "<<topic:$in_topic\r\n";
		echo "<<content: $in_content\r\n";
		if($in_content=="openning"){
		uio_out(0, 30, HIGH);

	$delta = -180; // clock wise


if($delta)
{
	um_read(0, 4, $angle, 4); // read angle (offset 4, 32bit integer)

	$angle += $delta;

	if($angle > 180)
		$angle = 180;

	if($angle < 0)
		$angle = 0;

	um_write(0, 4, int2bin($angle, 4)); // write angle (offset 4, 32bit integer)

	$width = WIDTH_MIN + (int)round($angle / 180.0 * (WIDTH_MAX - WIDTH_MIN));

	ht_pwm_width(0, $width, PWM_PERIOD);

}
			}
		else{
			if($in_content=="closing"){

	$delta = 180; // clock wise
if($delta)
{
	um_read(0, 4, $angle, 4); // read angle (offset 4, 32bit integer)

	$angle += $delta;

	if($angle > 180)
		$angle = 180;

	if($angle < 0)
		$angle = 0;

	um_write(0, 4, int2bin($angle, 4)); // write angle (offset 4, 32bit integer)

	$width = WIDTH_MIN + (int)round($angle / 180.0 * (WIDTH_MAX - WIDTH_MIN));

	ht_pwm_width(0, $width, PWM_PERIOD);
}

				}}

	}
}
//mqtt_unsubscribe("sensors/temperature");

mqtt_disconnect();

?>
phpoc.iniPHP
to extend the cach memory in the board
tcp0_txbuf_size = 4096 ; SSL/TCP send buffer
tcp0_rxbuf_size = 4096 ; SSL/TCP send buffer
ssl0_rxbuf_size = 4096
init.php file PHP
the initial file for the Phpoc Blue board
<?php
system("php task0.php")
?>
Costum Cortana Commands Project
it used to program a specific commands through cortana

Credits

1463573 774857932529293 415376004 n 0whujaicjy
Ibrahim alnasser

a Master Student in Embedded Systems Program , in TU Chemnitz
