Things used in this project

Hardware components:
R8326274 01
Raspberry Pi 2 Model B
×1

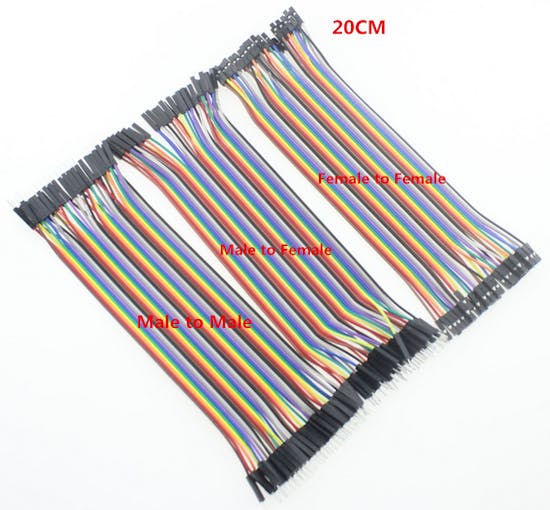

Male/Male Jumper Wires
×1

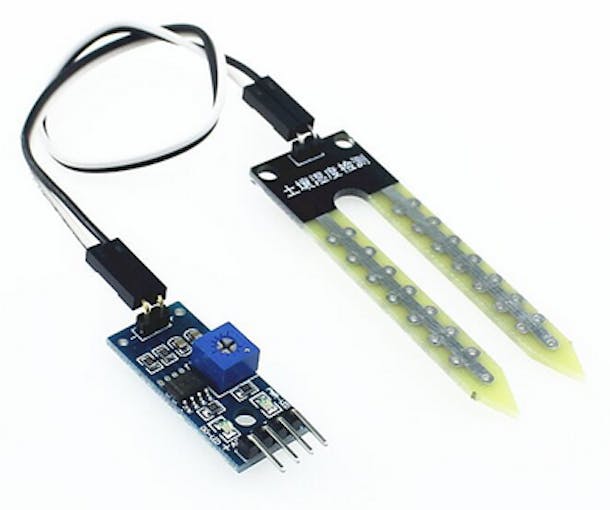

moisture sensor
×1
Software apps and online services:
10

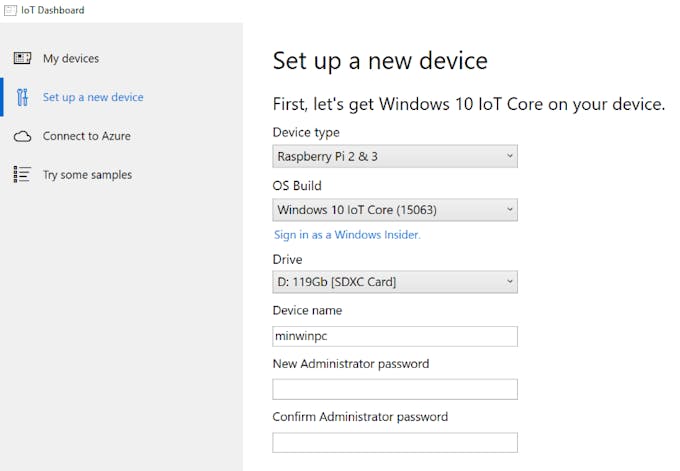

Microsoft Windows 10 IoT Core

Schematics

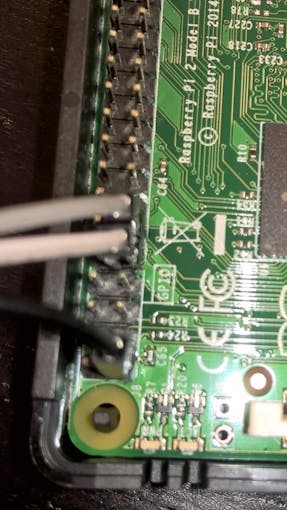

wiring

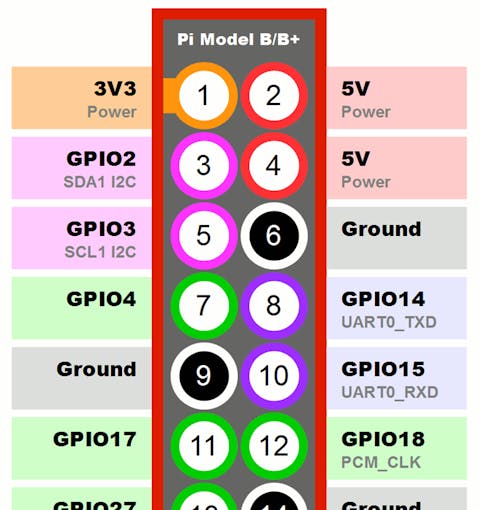

wiring: VCC -> 3v3 (Pin 1 on gpio)
GND -> GND (Pin 9 on gpio)
D0 -> GPIO 17 (Pin 11 on gpio)
35941a45 a8d7 4131 8ec8 d12808c076b1 jkimhnjg1i

Code

Code snippet #1C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Net.Http;
using Windows.ApplicationModel.Background;
using Windows.Devices.Gpio;
using Windows.UI.Core;
using System.ServiceModel;
using LightBuzz.SMTP;
using Windows.ApplicationModel.Email;

namespace BackgroundApplication1
{
    public sealed class StartupTask : IBackgroundTask
    {
        private const int SENSOR_PIN = 17;
        private GpioPin pinSensor;
        private BackgroundTaskDeferral deferral;

        private const string SMTP_SERVER    = "smtp-mail.outlook.com";
        private const string STMP_USER      = "YOURPLANTSADDRESSHERE@hotmail.com";
        private const string SMTP_PASSWORD  = "YOURPASSWORDHERE";
        private const int    SMTP_PORT      = 587;
        private const bool   SMTP_SSL       = false;

        private const string MAIL_RECIPIENT = "iwillwatertheplants@hotmail.com";

        public void Run(IBackgroundTaskInstance taskInstance)
        {
            deferral = taskInstance.GetDeferral();

            taskInstance.Canceled += TaskInstance_Canceled;

            var gpio = GpioController.GetDefault();

            if (gpio != null)
            {
                pinSensor = gpio.OpenPin(SENSOR_PIN);

                var r = pinSensor.Read();

                pinSensor.SetDriveMode(GpioPinDriveMode.Input);

                var dm = pinSensor.GetDriveMode();

                pinSensor.DebounceTimeout = TimeSpan.FromMilliseconds(50);

                pinSensor.ValueChanged += PinIn_ValueChanged;
            }
        }

        private void PinIn_ValueChanged(GpioPin sender, GpioPinValueChangedEventArgs args)
        {
            if (pinSensor.Read() == GpioPinValue.High)
                SendMail("Thirsty", "Plant needs water");
            else
                SendMail("I am good", "Plant is fine again");
        }

        private async void SendMail(string subject, string body)
        {
            using (SmtpClient client = new SmtpClient(SMTP_SERVER, SMTP_PORT, SMTP_SSL, STMP_USER, SMTP_PASSWORD))
            {
                EmailMessage emailMessage = new EmailMessage();

                emailMessage.To.Add(new EmailRecipient(MAIL_RECIPIENT));
                emailMessage.Subject = subject;
                emailMessage.Body = body;

                await client.SendMailAsync(emailMessage);
            }
        }

        private void TaskInstance_Canceled(IBackgroundTaskInstance sender, BackgroundTaskCancellationReason reason)
        {
            pinSensor.Dispose();
        }
    }
}
Github
https://github.com/modmypi/Moisture-Sensor/blob/master/moisture.py
Github
https://github.com/LightBuzz/SMTP-WinRT

Credits

6dec5eb240c49d979542d7cef64e9a8d
JP Hellemons

c# coder
